🏠 Command Center 🔄



		Output, Video	Rigging					VIVO Monitor Free-Standing Adjustable VESA Desk Stands (3)
				Monitor, Left				Acer SA3 Series SA243Y G0bi 23.8" LCD Monitor	1600x900	HDMI/VGA   < KVM Switch	VGA    					 < System 1 HDMI and System 2 VGA
				Monitor, Center				Samsung 27" Curved LED-Lit Monitor S27D590C	1920x1080	HDMI								 < System 1 HDMI
				Monitor, Right				LG 24UD58-B 24" 16:9 4K UHD			3840x2160	HDMI 	   < 4K HDMI 7.1 24b/192kHz LPCM Audio Extractor	 < System 1 HDMI

		Output, Audio	Main Pre-Amp / Processor / Layout	foobar2000  /  WASAPI  /  System 1  /  7.1 Speaker Configuration  /  668 watts
				Amplification Ch5, Ch6			Samson Servo-260  Studio Amplifier 2RU    90w ch/8 ohm Class A/B			 • Bose Acoustimass 3 Series IV
				Front Channel Speakers  FL Ch1, FR Ch2  JBL Professional 305P MkII Studio Monitor 82w Bi-Amped Class D (2)
				Center Channel Speaker  FC Ch3, FC Ch3  JBL Professional 305P MkII Studio Monitor LF Driver 5", HF Driver 1" (2)			(black)
				Subwoofer		       LFE Ch4 	Sony SA-W2500				  100W Continuous RMS 10" Driver			(black)
				Rear Channel Speakers   RL Ch5, RR Ch6  Bose Acoustimass 3 Series IV		  LF Driver 5.25", HF Driver 2.5", 8 ohm		(white)
				Side Channel Speakers  	SL Ch7, SR Ch8 	JBL Professional 1 Series 104-BT Monitors 30w ch Class D, LF Driver 4.5", HF .75", 8 ohm	(black)
				Other Equipment				Furman Power Conditioner  /  Direct Box  /  Hosa and Tisino Cables

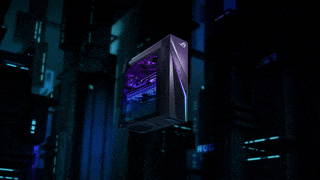

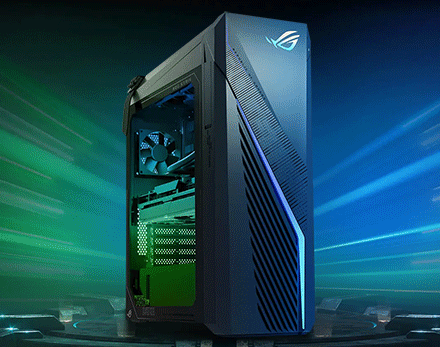

		System 1, 					Asus ROG G16CH 14700KF, Intel i7-14700KF 3.4 Ghz 20 Cores (liquid cooling/air cooling)
				GPU, PCIe				12GB GDDR6 Nvidia GeForce RTX 4070 Super Ampere 1.98 GHz - 2.48 GHz, 7168 Cores, 220 Watts, DisplayPort (3), HDMI	  > BAOXUN HDMI To VGA Adapter 		 > KVM Switch
				Storage, Internal, RAM			32GB DDR5 DIMM
 				Storage, Internal, Disk, SATA		01TB M.2 2280 NVMe PCIe SSD, Windows 11 Home / Windows 2025 Server
				Storage, External, Optical		LG 6X WP50NB40 Ultra Slim Portable Blu-ray Writer 					USB-Micro-B 2.0	  > USB-A 2.0
				Peripheral, USB Hub			ikuai 10 Port USB 3.0 Data Hub Aluminum USB Splitter with 36W (12V@3A)			USB-B 3.0	  > System 1 Port 1 USB-A 3.0
				Peripheral, Printer/Scanner
Canon TR4722  use ink cartridges: 276 (color) / 275 (black)
USB-B 2.0					 > USB to RJ45 Adaptor / RJ45 to USB Adaptor	  > Hub USB-A 3.0
				Storage, External, HDD			14TB Western Digital WDBWLG0140HBK-XB   {Audio, Graphics} (1)	SRC0  /  SRC0		USB-Micro-B 3.0	  > Hub USB-A 3.0
				Storage, External, HDD			08TB Western Digital WDBFJK0080HBK-NESN {Audio, Graphics} (2)	DST1  /  DST2		USB-Micro-B 3.0	  > Hub USB-A 3.0
				Storage, External			Samsung MUF-256AB/AM FIT Plus 256GB USB 3.1 Flash Drive	  				USB-A 3.0	  > Hub USB-A 3.0

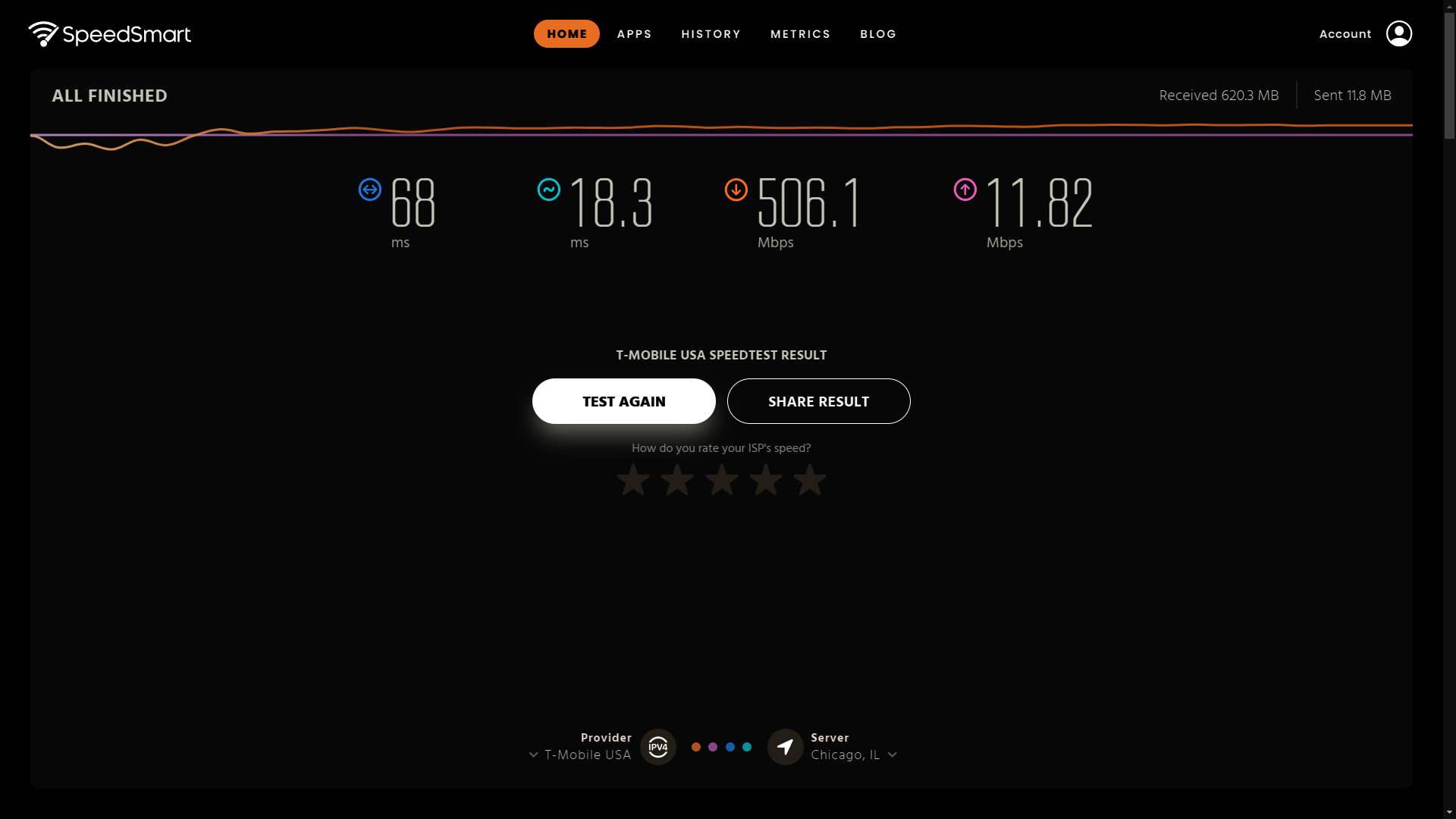

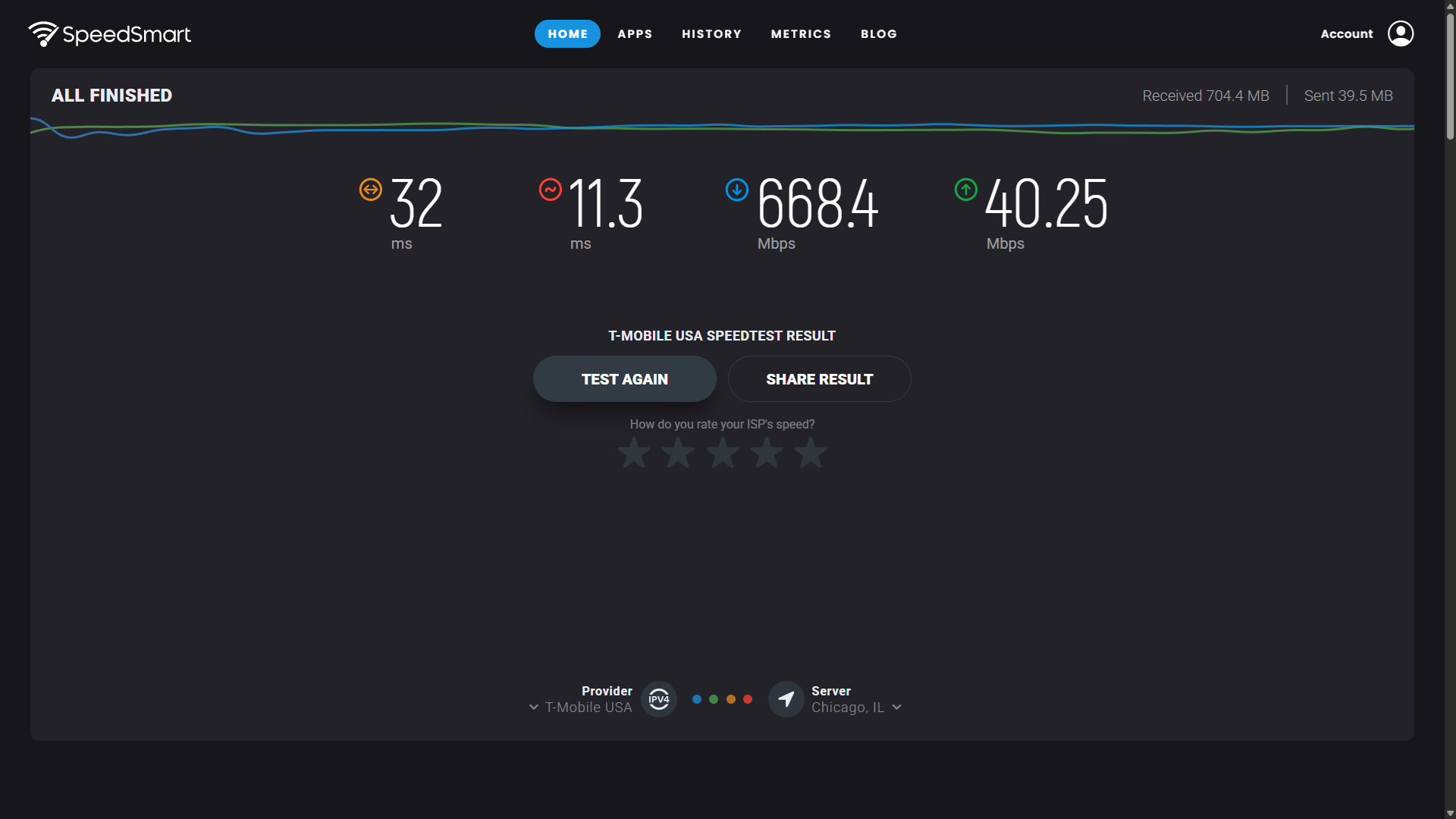

				Network, Internal			Internet, Realtek PCIe GBE Family Controller > 													 >  • Internet • T-Mobile 5G speedsmart.net
				Network, External, USB			Intranet, Realtek USB GbE Family Controller, uni USB 3.0 to 100/1000 Gigabit Ethernet LAN Network Adapter > System 1 Port 3 USB-A 2.0		 > GE-DS-242-PoE Managed Ethernet Switch Port 01 • Intranet
				Network, Internal Wifi			Intel WiFi 6E AX211 160MHz

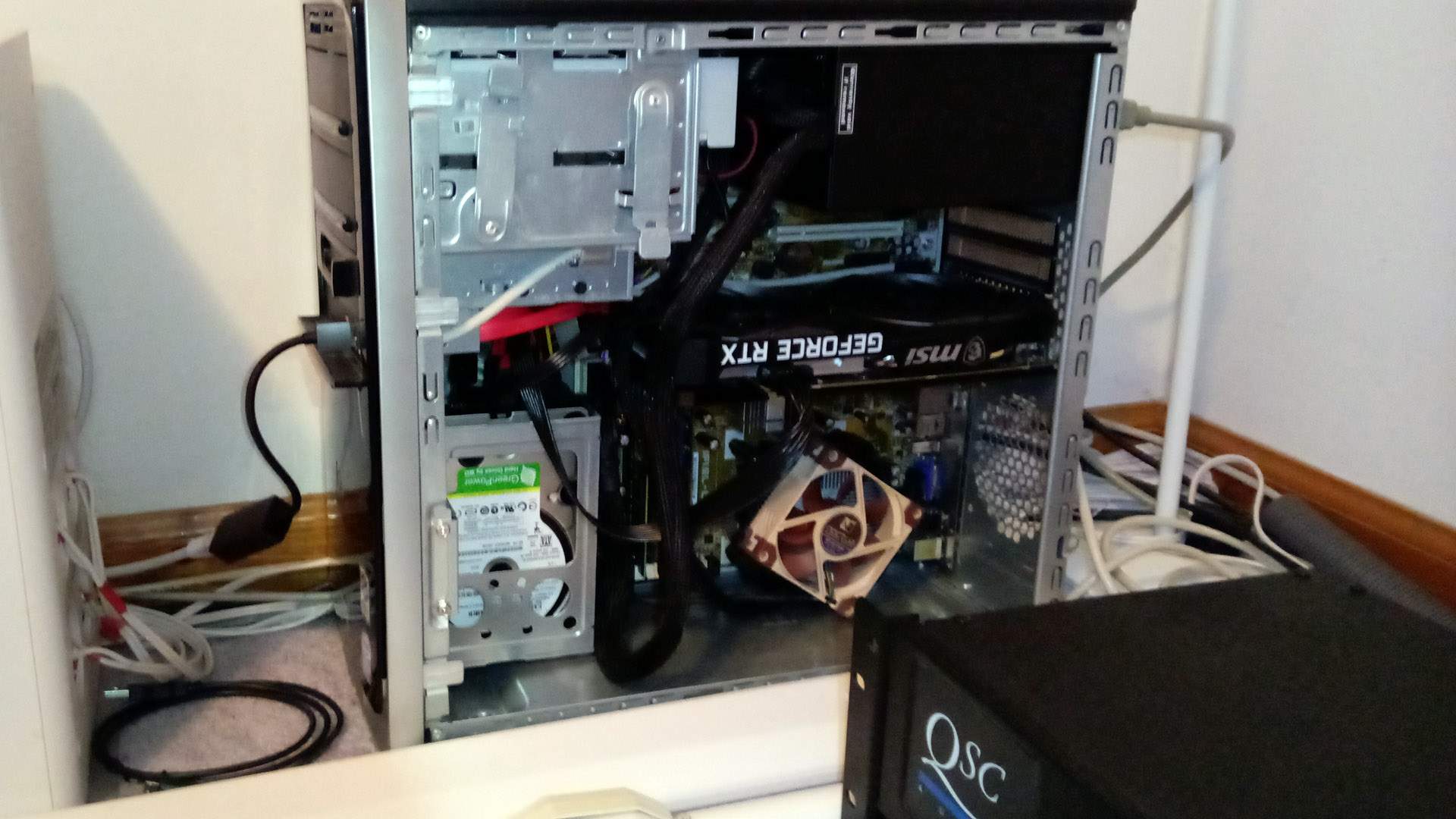

		System 2, 					HP Pavilion FJ463AA-ABA a6528P Mid-size ATX PC, Intel Pentium 2.2GHz E2200 2 Cores Allendale Processor, 1MB L2 cache, Noctua NF-A8 PWM System Cooling Fan, be quiet! PURE POWER 10-CM 500W power supply unit (PSU)
				GPU, PCIe				12GB GDDR6 MSI Nvidia GeForce RTX 3060 Ampere 1.8 GHz, 3584 Cores, 170 Watts, DisplayPort (3), HDMI	  > BAOXUN HDMI To VGA Adapter 		 > KVM Switch
				Storage, Internal, RAM			08GB DDR2 DIMM
				Storage, Internal, Disk, SATA		01TB Western Digital WDH1U10000 HDD, Windows 2022 Server, Internet Information Services v10.0
				Storage, Internal, Disk, SATA		250GB Bestoss SSD 3D TLC NAND, Windows 2022 Server %TMP%, AI Models and Data
				Storage, Internal, Optical, SATA	Asus 16x BW-16D1HT Blu-ray Writer
				Network, Internal			Intranet, Realtek 8111C 10/100/1000 Mb/s (Gigabit Ethernet) Integrated LAN > GE-DS-242-PoE Managed Ethernet Switch Port 03								 • Intranet
				Network, External, USB			Internet, Realtek USB GbE Family Controller, uni USB 3.0 to 100/1000 Gigabit Ethernet LAN Network Adapter > System 2 Port 3 USB-A 2.0	 > GE-DS-242-PoE Managed Ethernet Switch Port 05 • Internet

		System 3, 					HP Pavilion Slimline 400-334, AMD 1.4GHz E1-2500 2 Core, 1MB L2 cache, AMD Radeon HD 8240 Integrated graphics, External Power Supply 65W, 19.5V, 3.3A
				Storage, External, HDD, SAN		14TB Western Digital WDBWLG0140HBK-NESN {Backup} (2)		SRC   /  DST				  > System 3 USB-A 2.0		 > GE-DS-242-PoE Managed Ethernet Switch Port 06 • Intranet

		Input		Keyboard / Mouse			SunBeamTech Back Lit USB Keyboard, Illuminated Keys 800-1200-2400 DPI Mouse > KVM Switch USB-A 2.0 (2)	  > System 1 Port 4 USB-A 2.0 and System 2 USB-A 2.0
				Camera / Microphone			12 Megapixel HD Camera Clip-On 360 Degree USB for Video Conference Recording		USB-A 2.0	  > Hub USB-A 3.0

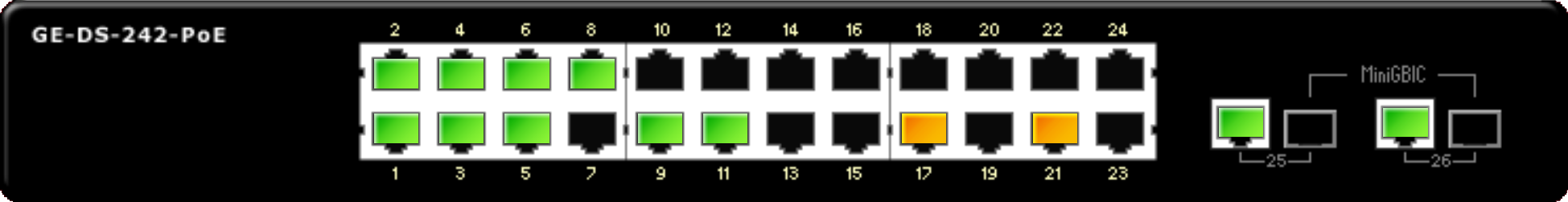

		Network		Managed Ethernet Switch			GE-DS-242-PoE  2G TP/SFP Combo 	http://192.168.1.100    Ports 01-10, Odd Numbers are Ethernet wall jacks  /  Ports 17-22, POE enabled  /  Ports 1, 17, 19, 25, 26 Protected
				Wireless Access Point			Cisco AIR-CAP3702I-B-K9 	http://192.168.1.150 >  GE-DS-242-PoE Managed Ethernet Switch Port 21    /   Running boot flash ap3g2-k9w7-tar.153-3.JD16.tar autonomous software
				Gateway (T-Mobile property)		Inseego FX4100 5G Router WiFi 7	http://192.168.1.1							  >  GE-DS-242-PoE Managed Ethernet Switch Port 25 Gigabit

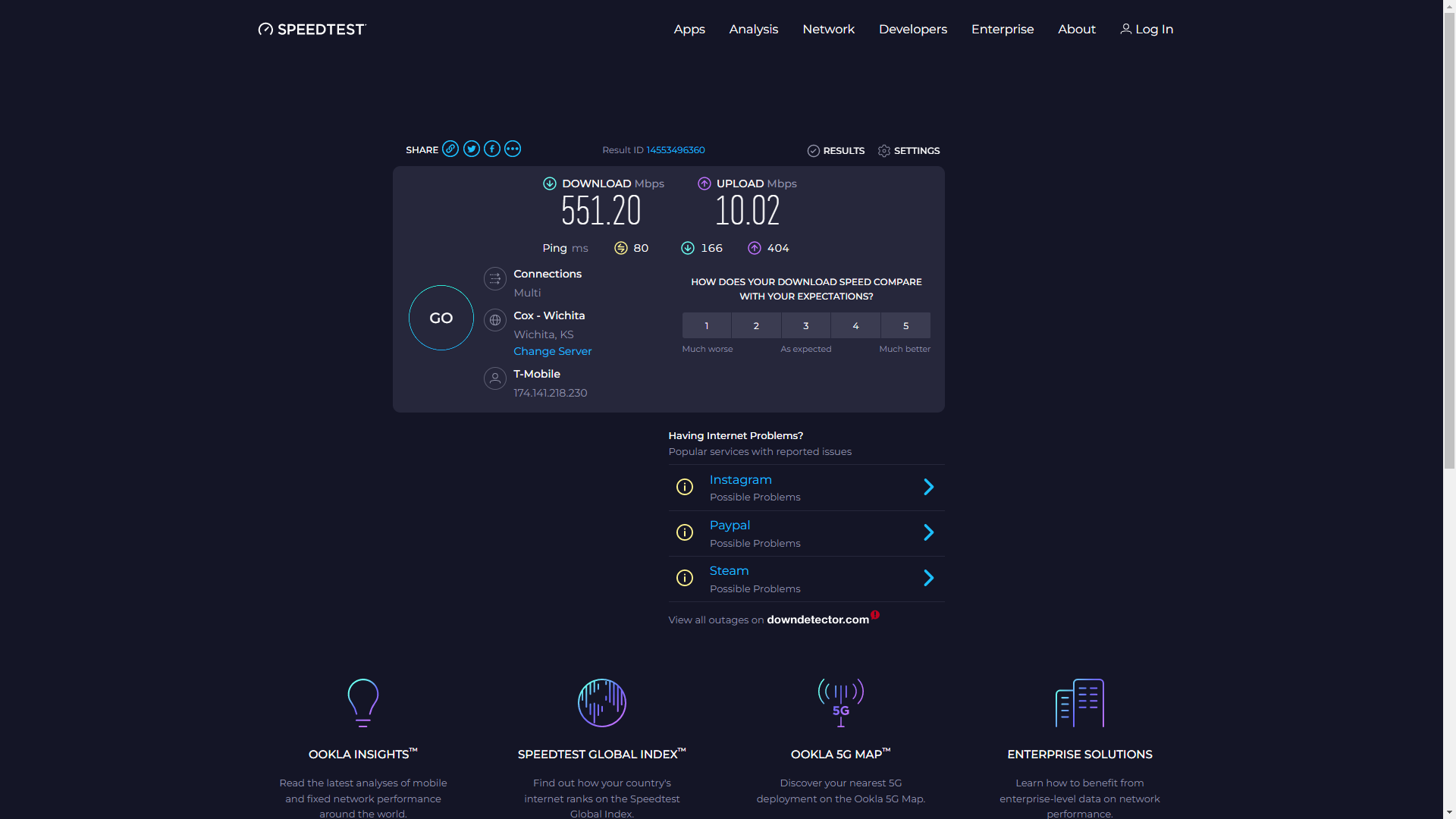

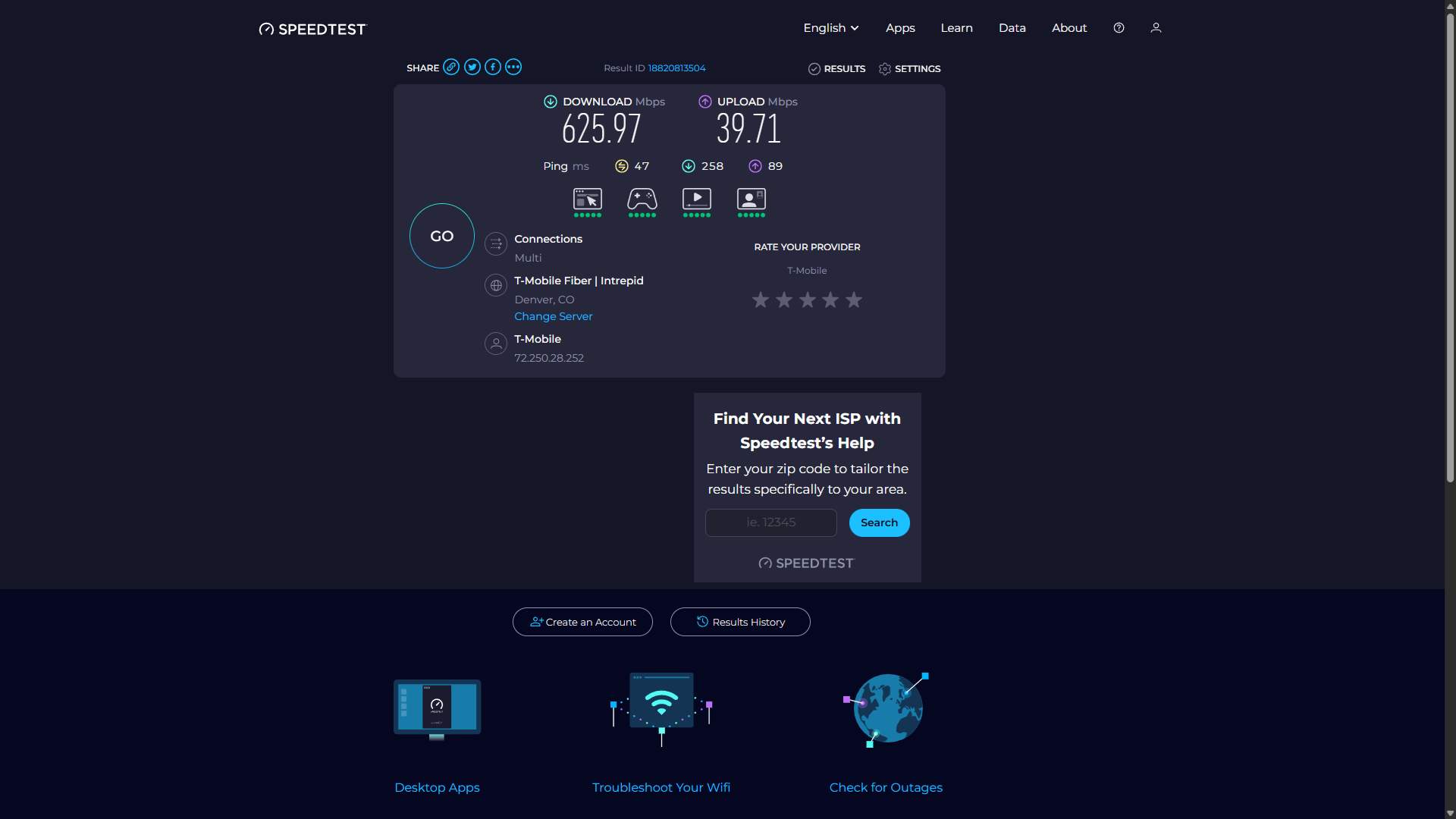

				ISP(s)					T-Mobile5G speedtest.net

		Emergency Power						CyberPower 625VA Uninterruptible Power Supply Battery Backup System (8) > Systems, network, and sensitive devices
